材質：不銹鋼、雙相鋼、碳鋼、鈦、鎳等
設計制造標準 Design ＆Manufacture Standard
|
技術規范：國標 設計標準：GB/T 12237 結構長度：GB/T 12221連接法蘭：GB/T 9113 JB 79 HG/T 20592 檢驗和試驗：GB/T 13927 GB/T 26480 |
Technical specification:GB Design standand:GB/T 12237 Length of the structure: GB/T 12221Connection Flange: GB/T 9113 JB 79 HG/T 20592 Test and Inspection:GB/T 13927 GB/T 26480 |
性能規范 Specifications
|
公稱壓力：1.6Mpa 強度試驗：2.4Mpa 密度試驗：1.8Mpa 氣密封試驗：0.6MPa 閥門主體材料：WCB(C),CF8(P),CF3(PL),CF8M(R),CF3M(RL) 適用介質： 水、蒸汽、油品、硝酸類，醋酸類 適用溫度：-29°C~150°C |
Nominal pressure:1.6Mpa Strength test:2.4Mpa Seal tese:1.8Mpa Gas seal test:0.6MPa Valve body material:WCB(C),CF8(P),CF3(PL),CF8M(R),CF3M(RL) Suitable medium:water,steam,oil,products,nitric acid,acetic acid Suitable temperature:-29°C~425°C |

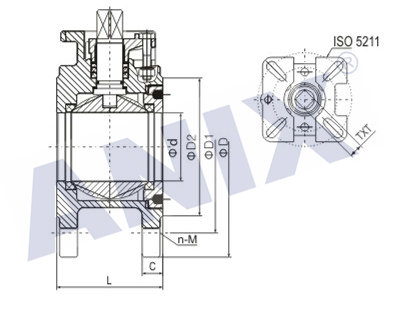

產品結構圖
